Situation 1: Use ZowieBox streaming SRT to vMix.

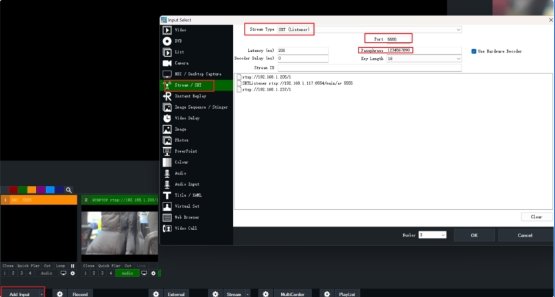

1. Open vMix, click Add Input in the lower left corner, and select Stream | SRT in the pop-up settings box. Select the streaming type as SRT (Listener), enter the required port (not occupied by other devices), and the required passphrase, and click Save.

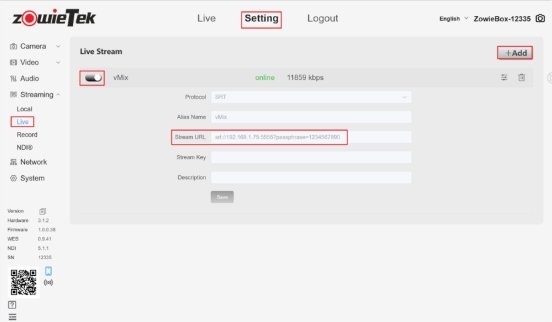

2. Log in to the ZowieBox web control page, click Setting -> Live-> Network Stream, click + Add, change the protocol to SRT, and enter the SRT URL: srt://192.168.1.75:5555?passphrase= 1234567890

192.168.1.75 is the IP address of the computer where vMix is located; 5555 is the port just set; 1234567890 is the password just set; ?passphrase= is a fixed combination, please do not omit it.

Situation 2: Use ZowieBox to decode the SRT stream of vMix.

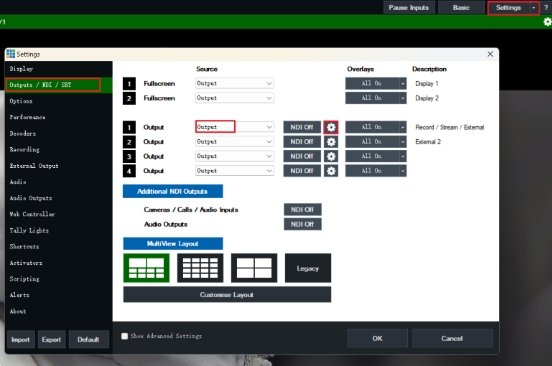

1. Click Settings in the upper right corner of vMix, select Outputs|NDI|SRT, select the resource needed, and then click the Settings button on the right.

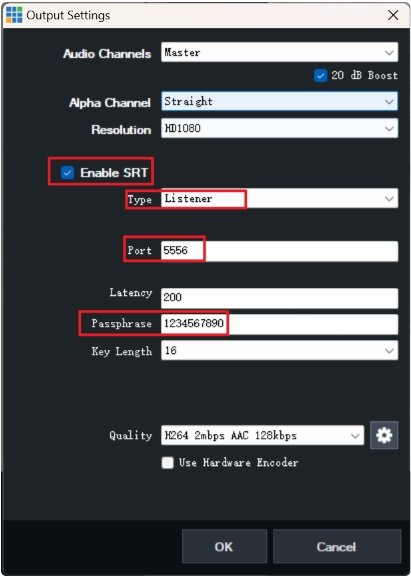

2. Select to enable SRT, change the type to Listener; enter the unoccupied port number and the required passphrase, and click OK.

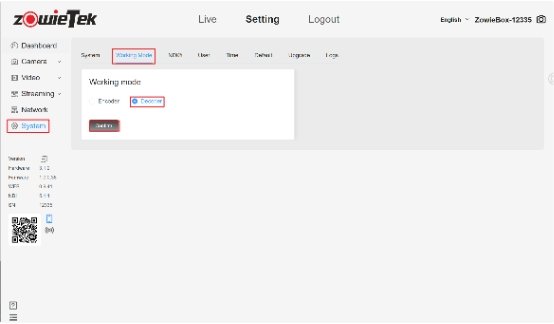

2. Open the web control interface of ZowieBox, click Setting->System->Working Mode, and switch it to decodermode.

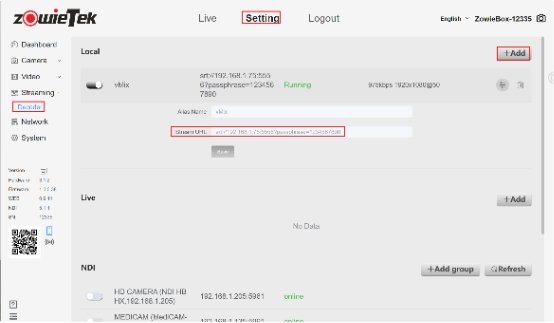

3. Click Decoder，add a new decodingstream, enter the srt URL: srt://192.168.1.75:5556?passphrase=1234567890 and click Save.

192.168.1.75 is the IP address of the computer where vMix is located; 5556 is the port just set; 1234567890 is the password just set; ?passphrase= is a fixed combination, please do not omit it.
