AF mode camera is fine tuned focus at 1 meter object distance at factory. If you install a new M12 lens for the first time, you need to focus manually and then calibrate it.

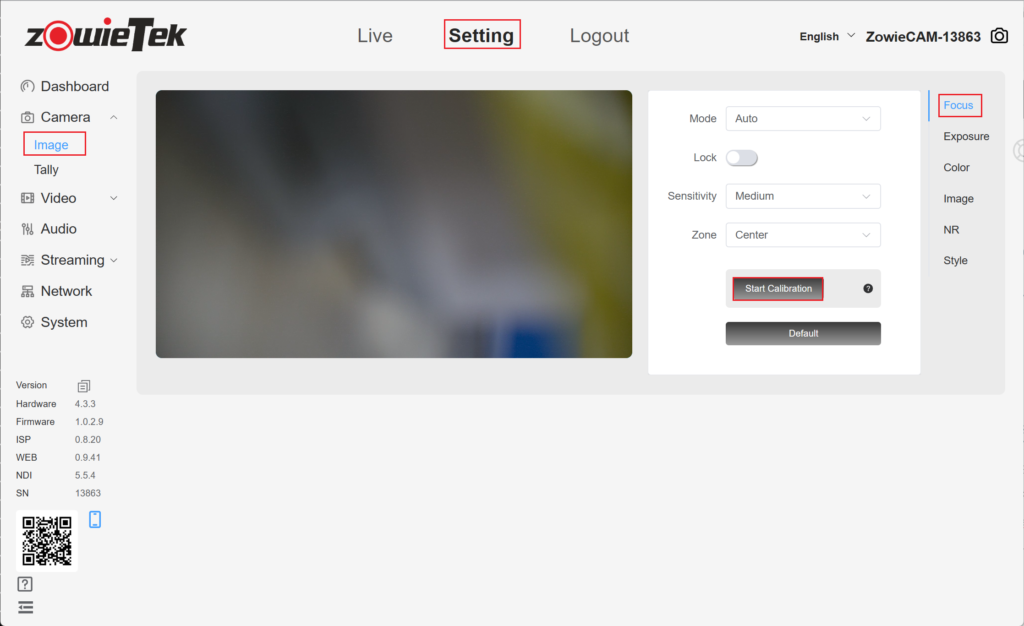

1) Log in to the ZowieCAM web page
2)Click ‘Setting->Camera->Image->Start Calibration ,then manually twist the focus ring until it is completely sharp.
(clockwise is to focus far and counterclockwise is to focus near).
3)Then click ‘End Calibration’on the web page.
If you have any issues, you can watch the demonstration video below.
Â
1) Log in to the ZowieCAM web page
2)Click 'Setting->Camera->Image->Start Calibration ,then manually twist the focus ring until it is completely sharp.
3)Then click 'End Calibration'on the web page.
The specific hardware versions and corresponding functions are as follows:
(1) Please use official NDI software, such as NDI monitor, to check whether the NDI source can be decoded normally.
(2) Please check whether the IP address displayed by the NDI source is in the same network segment as the IP address of ZowieBox.
